Technical Overview |

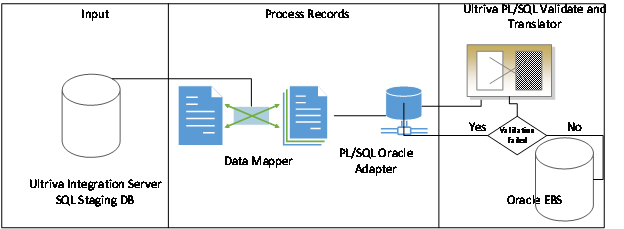

Ultriva has an integration server which acts as a repository of transactions even if the application is hosted in a cloud. This integration server communicates to Ultriva and publishes the data to Staging Database. The connector job fetches the data from staging database and translates the data and passes the data to Ultriva PL/SQL connector code. The PL/SQL validates and populates the records into Oracle open interface tables. The Connector’s Queue Monitor Job monitors the Oracle Advanced queue for response and updates the results back to Ultriva’s repository with a status update. Here is a high level overview of the interface diagram:
